Geo-Spatial Solutions in Challenging Economic Times

Introduction

The landscape of the geo-spatial industry is undergoing rapid changes. Some suggest a geo-revolution is underway. The range of products and platforms is broadening. Existing boundaries are blurring. In parallel, the world is experiencing an unprecedented economic downturn. Start-ups and established businesses are increasingly looking for low cost solutions. This article will look at the current state of the geo-spatial industry. It will discuss some of the software and base map sources given tightening budgets.

Is Google Maps GIS?

Google maps was launched in November 2005. Thus began the rapid expansion of the geo-industry. Yahoo and Microsoft soon entered the market. Mapquest extended its offering and ESRI broadened their business. All made public their mapping API’s. Slippy tiled base maps became easy to add to any web sites. But are these consumer maps, often described as mash ups, GIS? This has been much discussed on the Web (http://highearthorbit.com/is-googlemaps-gis/). Though there are many differing opinions, the general agreement is that the boundaries are rapidly blurring. It might be worth for this discussion, to include these new, currently free tools.

The GIS Stack

The classic GIS stack is usually discussed in terms of the client, server and database. We will add an additional category, that of tools for tiling and caching.

Client
Increasingly geo-companies are focused on building rich Internet mapping applications (RIA). That is, applications which more closely resemble those running on the desktop. Two technologies dominate; those applications which run in the Flash player, and those built using AJAX. The Flash player is an Adobe product, which runs on over 90% of all Web browsers. Applications which run in the player can be written in Adobe Flash or Flex using the Actionscript programming language. Actionscript 3.0 (AS3) is the current version, and the one discussed here. The Flash and Flex SDK’s are free, though their respective IDE’s will need purchasing. AJAX is built on Javascript. It is completely open source, and supported by a large user community. One more RIA technology is worth mentioning. Microsoft recently released Silverlight, in direct competition with Flex. Like Flex, the SDK is free, but not the Visual Studio IDE.



Figure 1 – Some of the wide array of options for building an open source GIS stack

The first two options in the client layer we will discuss are pure open source. They are both the most accessible and flexible solutions. OpenLayers (http://openlayers.org) was developed by MetaCarta (http://www.metacarta.com/) and is a Javascript library. Modest Maps is an AS3 mapping library. Developed in part by Stamen Design (http://stamen.com/), Modest Maps has a sizeable user community, which provides excellent support. Both of these solutions provide full access to the base code. This allows developers to customize at their own discretion. In each case, these clients can access a wide range of different base maps.



Figure 2 – FlakeFinder a ski resort mash up using Modest Maps

Less open but still free are the mapping API’s from Google, Microsoft (MSN), Yahoo, Mapquest and ESRI. They break down as follows:

Google API’s – (http://code.google.com/apis/maps/documentation/index.html) - AS3, Javascript

MSN API’s – AJAX, .NET

Mapquest API’s (http://developer.mapquest.com/) – AS3, Javascript, C++, Java, .NET

Yahoo API’s (http://developer.yahoo.com/maps/) – AJAX, AS3

ESRI API’s (http://resources.esri.com/arcgisserver/index.cfm?fa=applications) – AS3, Silverlight, .NET, Java

The use of each API requires a free key. They provide a range of services including marker overlay, routing, styling and geocoding, The ESRI API’s provide the broadest range of GIS tools. They can also access many different map services including Google, MSN and the GeoWebCache/Geoserver and TileCache/MapServer combinations. Recently added to the ESRI offering is an API for Silverlight.

Tiling and Caching
Geoserver will generate tiles for maps automatically, or use seeding to pre-generate tiles, Mapserver relies on ka-Map for tile generation and viewing.

There are two main caching solutions. Each dramatically improves the performance of any mapping application. TileCache (http://tilecache.org/) is another MetaCarta open source product. It is Python based and supports multiple different rendering backends, most notably MapServer. GeoWebCache (http://geowebcache.org/trac) is written in Java. It caches map tiles as they are requested, in effect acting as a proxy between client and server. Based on the request, if no pre-rendered tiles are found, it calls the server to render new tiles. GeoWebCache works with GeoServer, or any WMS-compliant server.

Map Servers
There are many map server solutions. But, two low cost solutions stand out. First there is MapServer (http://mapserver.org/). This is a very popular open source solution. It runs under the Apache Web Server and is supported by an excellent PHP based scripting language called Mapscript. MapServer is a Web map rendering engine. GeoServer (http://geoserver.org) is the second open source spatial server. Built in Java, it is a complete spatial Web environment, often classified both as a rendering engine and application framework.

MapServer and Geoserver can be integrated easily with maps from Google, MSN and Yahoo. They both compare favorably in terms of performance. Geoserver comes with a management interface, this makes set up and configuration somewhat easier than for MapServer. But the lack of need for an application server and the excellent Mapscript, are among the many attractions of MapServer.

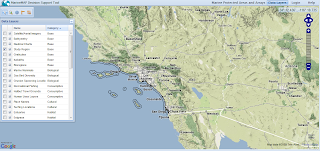

Figure 3 – MarineMap is an RIA which uses OpenLayers and Google base maps.

Databases
Arguably, the most robust spatial open source database solution is the PostGIS/Postgres combination. PostGIS was developed by Paul Ramsey. He provides excellent documentation and support via his blog (http://blog.cleverelephant.ca/). PostGIS is an extension of Postgres. Like ESRI’s ArcSDE is allows relational databases to work with spatial data. Technically though they are quite different, PostGIS is part of the database while ArcSDE is spatial middleware, running as a separate process.

Mobile Platform

The majority of mobile mapping applications currently run on the IPhone. Most have been built using the Google maps Javascript (version 3) API. Maps have been much the focus in the mobile space recently. Nokia have just launched OVI Maps and are in the process of exposing the Javascript API to developers. The AS2 version of Modest Maps allows Flash Lite development, which will run on any handset with the Flash player installed.

Summary

There are many low cost solutions available for building geo-spatial applications. This article walked through the GIS stack, discussing some of these options. Increasingly, as budgets tighten, companies are turning to these open source development tools. Often they are surprised by what they find.

References
http://geoserver.org/display/GEOSDOC/Google+Maps - Geoserver and Google maps integration
http://www.rvaidya.com/blog/gis/2009/02/12/mapserver-using-google-maps-with-php-mapscript/ - MapServer and Google maps integration
http://kelsocartography.com/blog/?p=2257 - Marine Maps discussion
http://spatialhorizons.com/2007/11/14/using-mapserver-2-generating-map-tiles/ - generating map tiles for MapServer using ka-Map.
